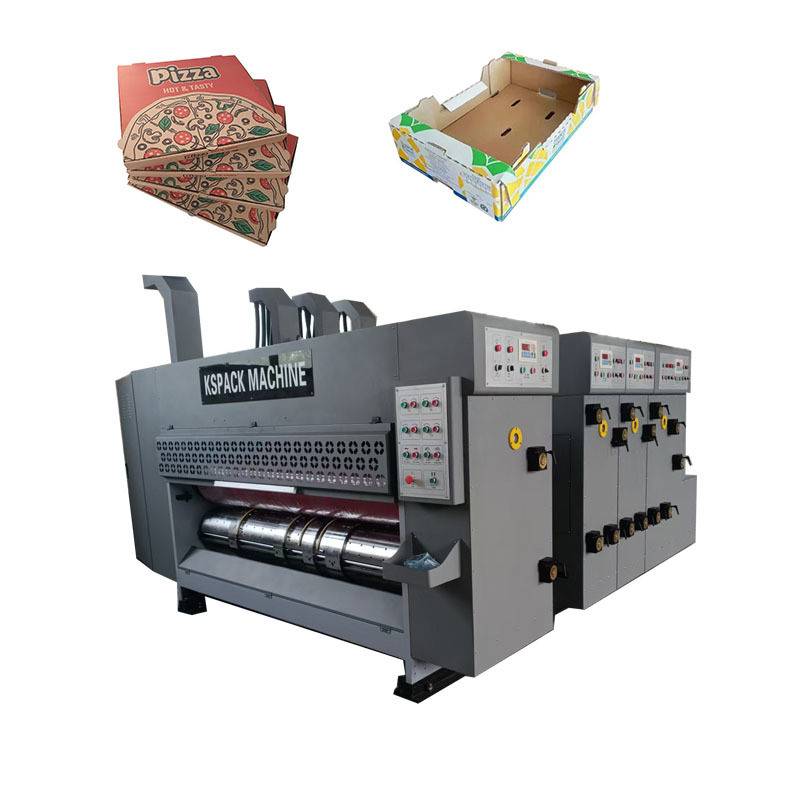

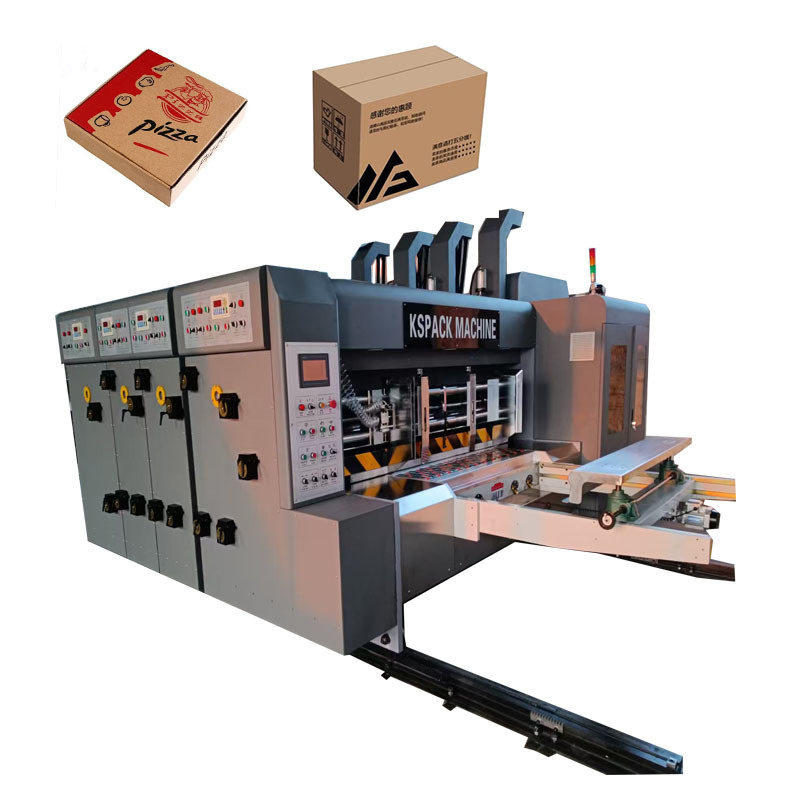

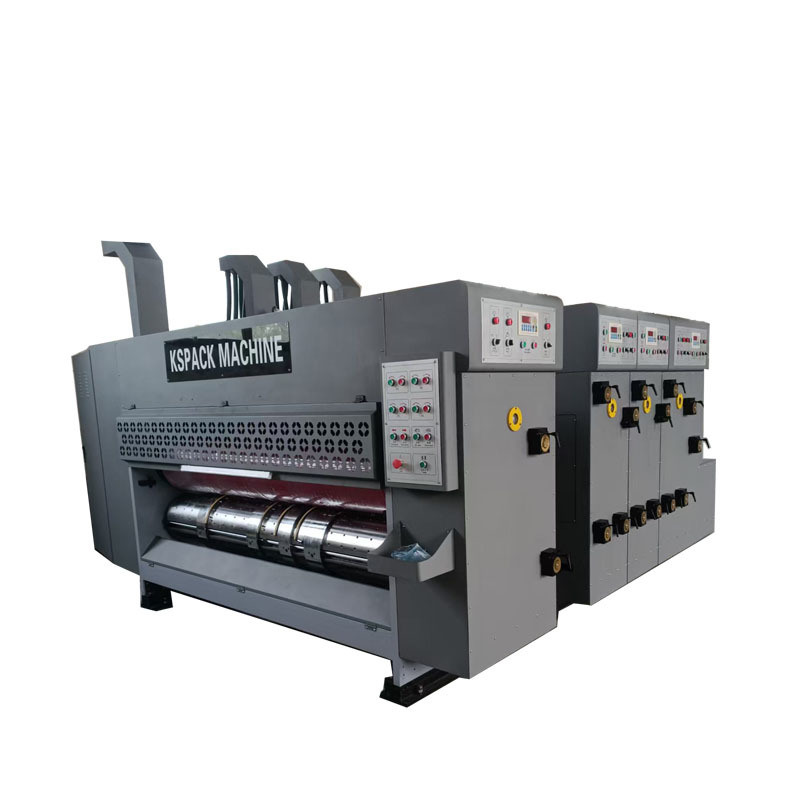

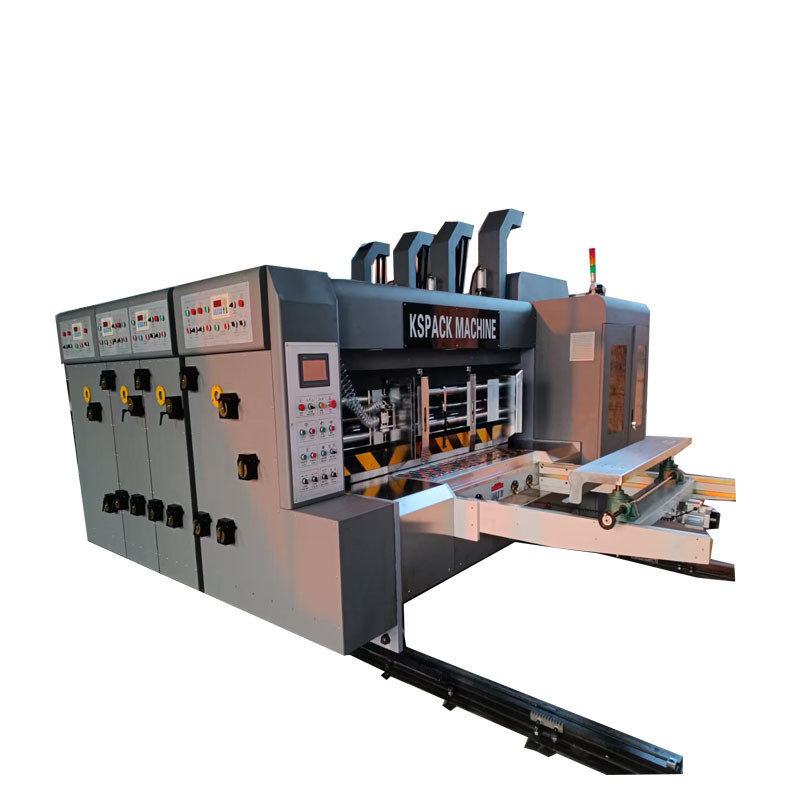

Shipping Box Making Machine Price Small Corrugated Carton Box Printing Slotting die-cutting Machine
-
برجسته کردن
small corrugated box making machine,corrugated carton printing slotting machine,die-cutting machine for shipping boxes
,corrugated carton printing slotting machine
,die-cutting machine for shipping boxes
-
نام محصولجعبه کارتن با راه راه چاپ اسلات ماشین برش ماشین برش
-
مادیتخته راه راه و جوهر
-
درجه اتوماتیککامل اتوماتیک
-
نوعاسلات چاپگر کارتن
-
Brand nameKSPACK
-
سرعت ماشینطراحی سرعت 120pcs/دقیقه ، سرعت کار 80 ~ 100pcs در دقیقه
-
ضخامت موثر2 تا 12 میلی متر
-
محل منبعچین
-
نام تجاریkspack
-
گواهیCE
-
شماره مدلKS2400
-
مقدار حداقل تعداد سفارش1Set
-
قیمت15000~40000USD
-
جزئیات بسته بندیکانتینر و بسته چوبی
-
زمان تحویل30 تا 40 روز
-
شرایط پرداختL/C ، T/T ، Western Union ، MoneyGram
-
قابلیت ارائه15 SETS / ماه
Shipping Box Making Machine Price Small Corrugated Carton Box Printing Slotting die-cutting Machine
Shipping Box Making Machine Price Small Corrugated Carton Box Printing Slotting Die-cutting Machine
Machine Specifications
| Item | Unit | 2200 Model |
|---|---|---|
| Machine size | mm | 4000*3000*3000 (L*W*H) |
| Wall board size | mm | 2200 |
| Paperboard size | mm | 2000*900 |
| Min size | mm | 450*220 |
| Print size | mm | 1800*950 |
| Print plate thickness | mm | 3-8 |
| Max speed | sheets/min | 180 |
Machine Structure
Lead Edge Feeder Part
- The outer diameter of the upper roller is φ100 mm
- High-quality seamless steel, wrapped with wear-resistant rubber, and balance correction
- The lower roller φ124mm embossed hard chrome plated, and balance correction
Printing Part
- The outer diameter is φ292mm (including the outer diameter of the plate is φ300mm)
- The surface of the steel pipe is ground and hard chrome plated
- Do balance correction, and run smoothly
- Loading and unloading the printing plate, the electric control of the foot switch is reversed
- 1-5 colour optional

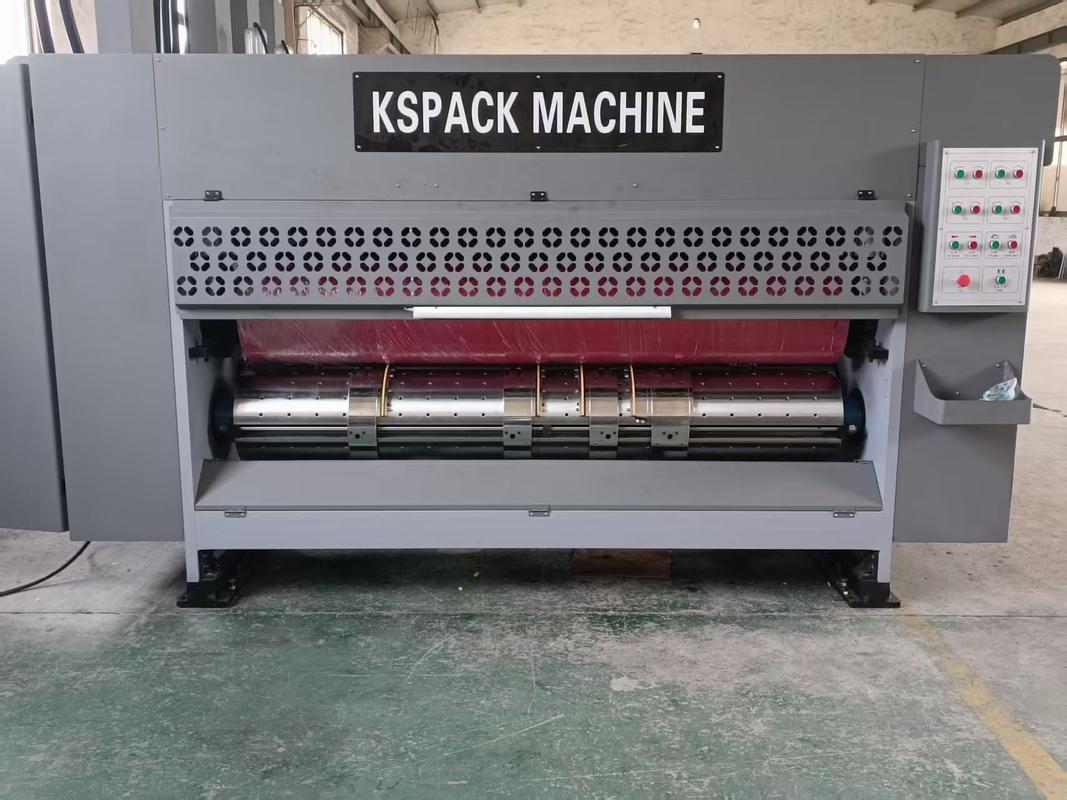

Slotter Part
- The shaft diameter is φ71 mm and the surface is ground. Hard chrome plated for smooth movement
- Do balance correction, and run smoothly
- Manual adjustment of the pressure wheel gap dial, the adjustment range is 0-12mm
- Slotted tool holder traverse adjustment mechanism
Die Cutter Part (Optional)
- The plate roll and pad roller are made of high quality steel, and the surface is polished and plated with hard chrome
- Static and dynamic balance correction, good running stability
- Pneumatically controlled die gap and automatic detachment die cutter device to protect the rubber pad and prolong the service life of the rubber pad
